Fiberglass anchors

Additional information

Outer diameter	18–32 mm
breaking load	up to 560 kN
material	fiberglass
Product Name	SupFRP Fiberglass Anchor
Applications	Designed for the support and reinforcement of underground mine workings.

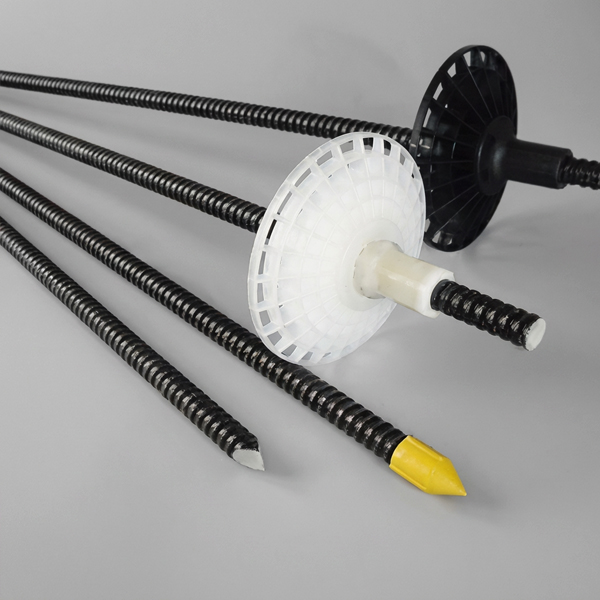

Component Description	► Fiberglass reinforcing bar with a continuous threaded profile along its entire length ► Plastic or steel bearing plate ► Plastic or steel anchor nut
Key Advantages	► Corrosion-resistant ► High tensile strength ► Lightweight ► Can be cut by the cutting heads of roadheaders and longwall mining machines ► Used in electrical engineering projects due to its non-conductive properties
Operating Principle	Fast-setting resin capsules are inserted into a pre-drilled borehole. After the anchor is installed, the capsules rupture, the components mix, and a chemical reaction occurs, forming a strong bond. The hardened resin penetrates cracks and pores in the borehole wall, securely anchoring the bar in place.
Packaging	Packaged in bundles of up to 30 pieces, depending on the anchor diameter.
Equipment	Drilling rig (hydraulic or pneumatic) — provides rotation and insertion of the anchor. Polymer resin capsules.
