AKC Lokset Polymer Resin Capsules

Capsule diameter

20–38 mm

Suitable borehole diameter

22–44 mm

Full curing time

90–190 sec

Applications

► Installation of threaded-profile anchor systems
► Anchoring and securing equipment bolts
► Installation of pipe and cable support systems
► Anchoring reinforcing bars (rebar) to structural elements of buildings

Component Description

The capsules contain a precisely measured mixture of polyester resin,
mineral filler, and hardener. The resin and hardener are stored separately
within two isolated compartments of a single dual-chamber film package.

Key Advantages

► Bond strength exceeds the strength of the anchor itself
► Versatility – available in various sizes, setting times, and viscosity
grades
► Fast installation process
► Easy to use – the solid resin capsules can be inserted into the
borehole quickly and conveniently
► Higher hardener content compared to standard AKC capsules, allowing
more effective mixing and improved performance of the Lokset capsule
system

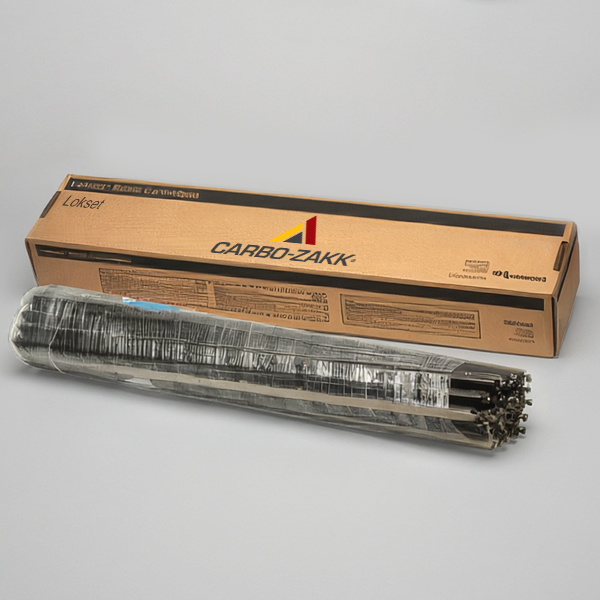

Packaging

Polyester resin capsules are packed in cardboard boxes or tubes, with 7 to
60 capsules per package, depending on the capsule diameter and length.

Storage

Shelf Life: Polyester resin capsules have a shelf life of 6 months from
the date of manufacture when stored at temperatures not exceeding 20°C.

Upon customer request, the shelf life can be extended to up to 9 months.

Equipment

A drilling rig (hydraulic or pneumatic) that provides the rotation and
insertion of the anchor during installation.
