AKC-Type Polymer Resin Capsules

Applications

► Installation of threaded-profile anchoring systems
► Securing equipment bolts
► Installation of pipe and cable support systems
► Anchoring reinforcing bars to structural elements

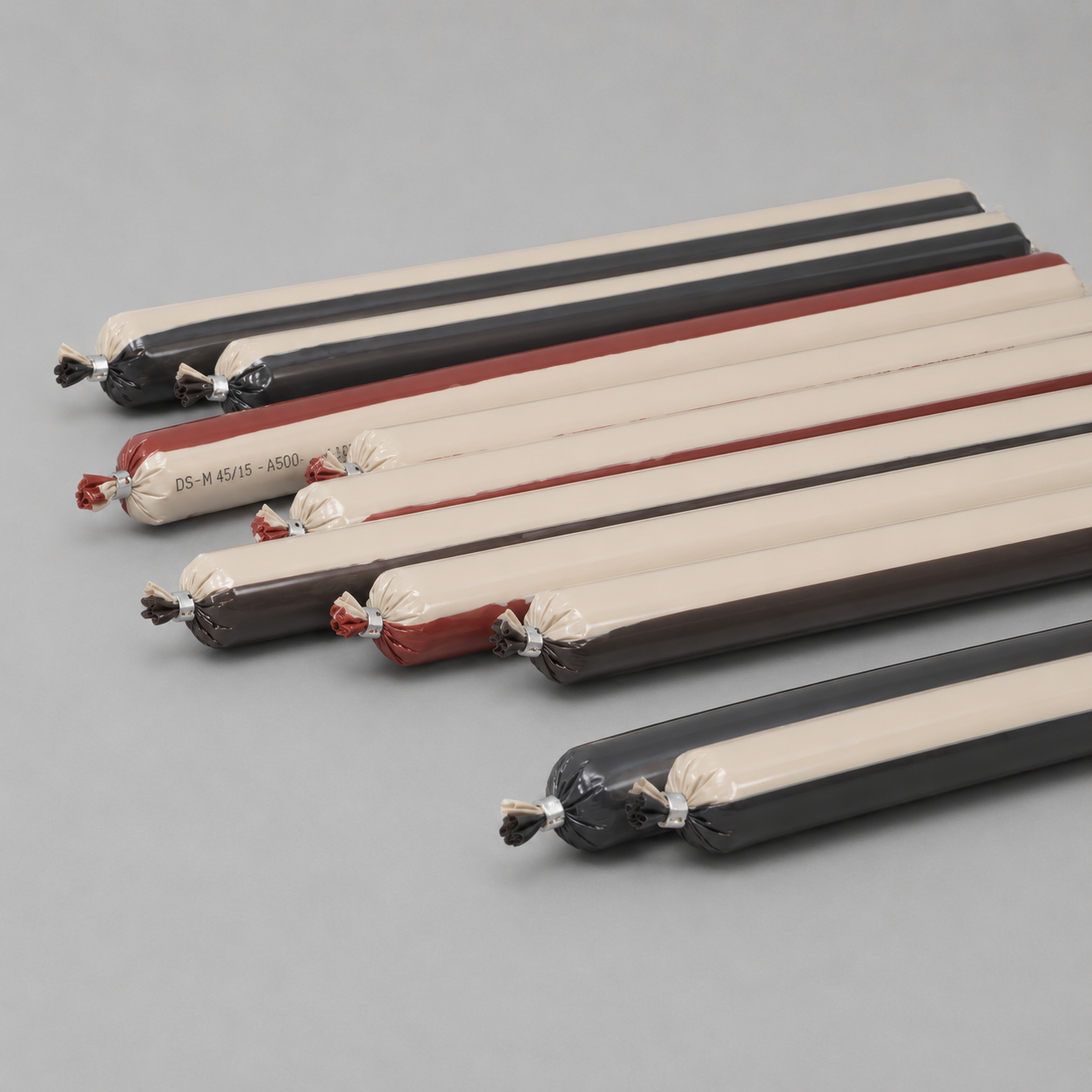

Component Description

The capsules contain a precisely measured mixture of polyester resin,
mineral filler, and hardener. The resin and hardener are stored separately
in isolated compartments within a single dual-chamber film package.

Key Advantages

► Bond strength exceeds the strength of the anchor itself
► Versatility – available in various sizes, setting times, and viscosity
grades
► Fast installation process
► Easy to use – the solid polymer capsules are easily inserted into the
borehole

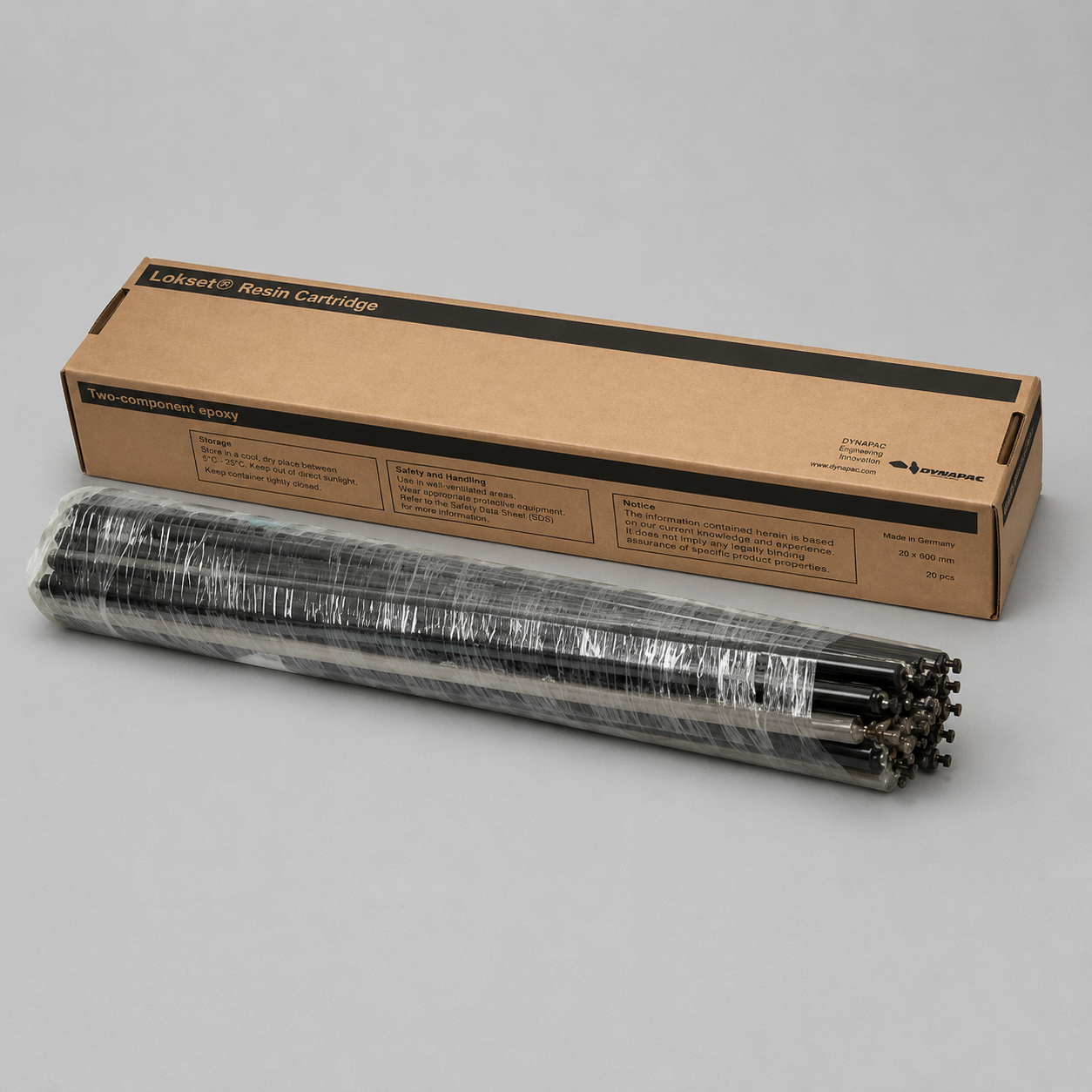

Packaging

Polyester resin capsules are packaged in cardboard boxes or tubes,
containing 7 to 60 capsules per package, depending on the capsule diameter
and length.

Storage

Shelf life of the polyester resin capsules is 6 months from the date of
manufacture when stored at temperatures not exceeding 20°C. Depending on
customer requirements, the shelf life may be extended to up to 9 months.

Equipment

Drilling rig (hydraulic or pneumatic) — provides rotation and insertion of
the anchor.
